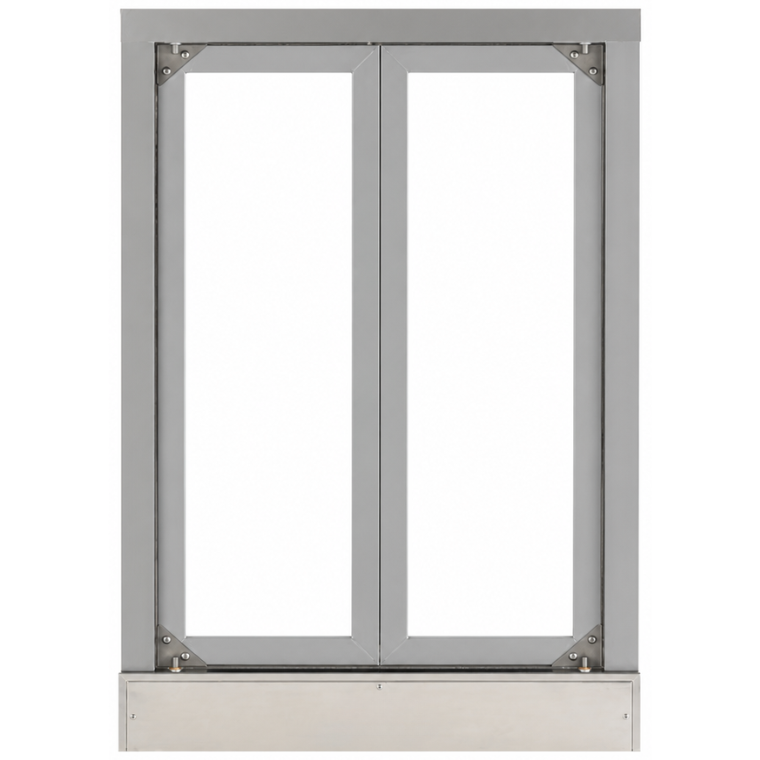

Drive Thru Windows

Shipped Fully Assembled and Ready to Install

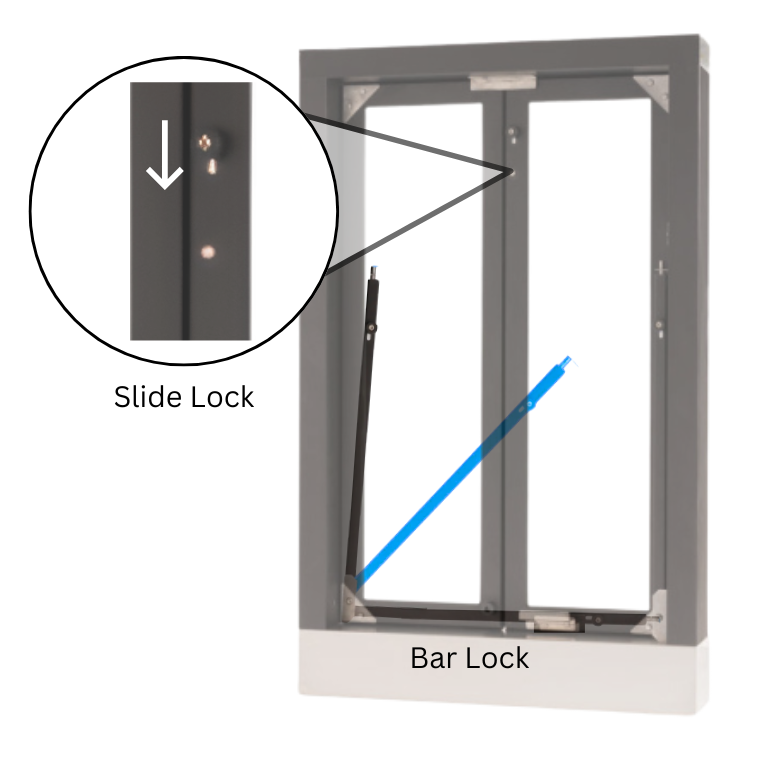

Locking Bar and Slide-Bolt Locks
1/4" Clear Tempered Safety Glass
Weather-Resistant and Sealed to Protect from the Elements
Dark Bronze or Clear Anodized Aluminum
Corrosion-Resistant Material: Anodized Aluminum and #304-#3 Finish Stainless Steel
Unit Size: 24" x 38-1/2", 27-3/4" x 40"
Service Opening: 16" x 32", 20" x 19", 20" x 24-1/4", 20" x 32", Custom
Rough Opening: 24-3/8" x 38-7/8", 28-1/8" x 40-3/8"
F.O.B. Houston, TX

QSFM1C / QSFM1B Semi-Automatic	Unit Size: 24" x 38-1/2" Service Opening: 16" x 32" Rough Opening: 24-3/8" x 38-7/8"

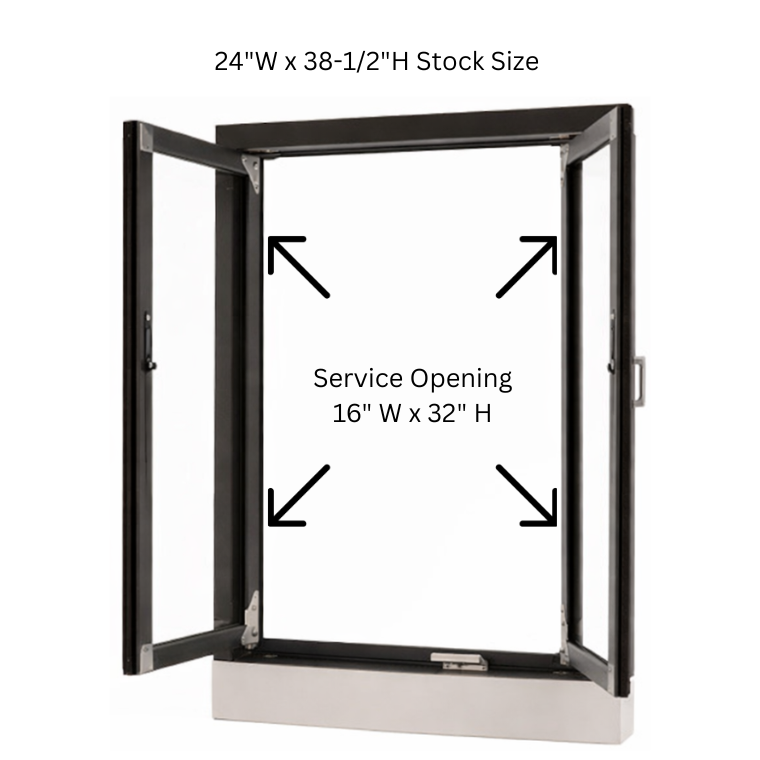

QSCM1C / QSCM1B Manual	24” W x 38-1/2" H Window Frame Service Opening 16" W x 32" H 24-3/8" W x 38-7/8" H Rough Opening
QSPW116C Projected Semi - Automatic	Unit Size: 27-3/4" x 40" Service Opening: 20" x 19" Rough Opening: 28-1/8" x 40-3/8"
QSPW216C Projected Semi - Automatic	Unit Size: 27-3/4" x 40" Service Opening: 20"x 24-1/4" Rough Opening: 28-1/8" x 40-3/8"
QSPW516C Projected Semi - Automatic	Unit Size: 27-3/4" x 40" Service Opening: 20" x 32" Rough Opening: 28-1/8" x 40-3/8"
QSPW316B Projected - Manual	Unit Size: 27-3/4" x 40" Service Opening: 20" x 19" Rough Opening: 28-1/8" x 40-3/8"

QSPW416C

Projected - Manual

Drive-Thru Windows
