• 36x48 and 48x48 with glass are in stock.
• Other sizes built to order.
• Ships knocked down and is easy to assembly.

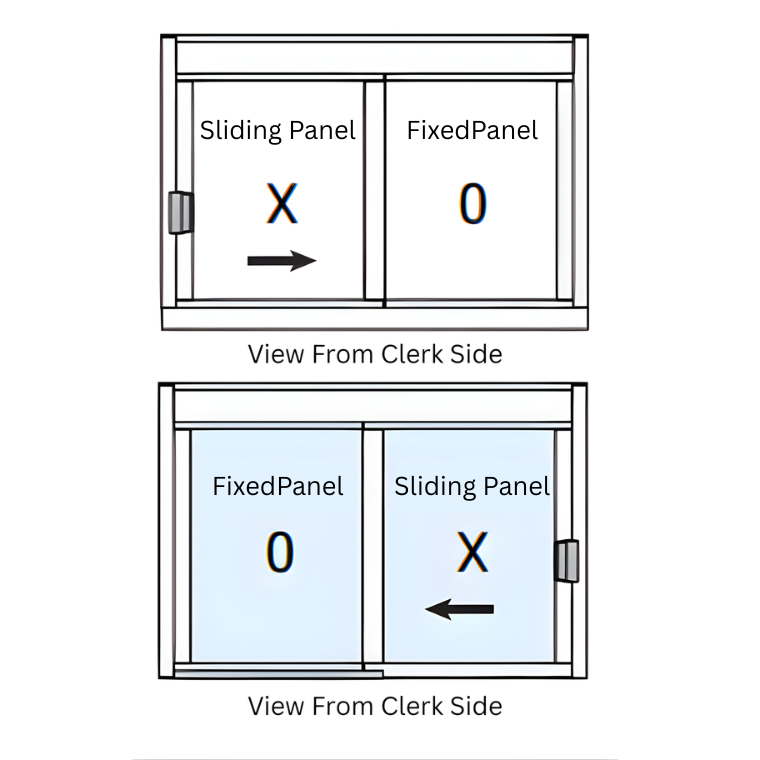

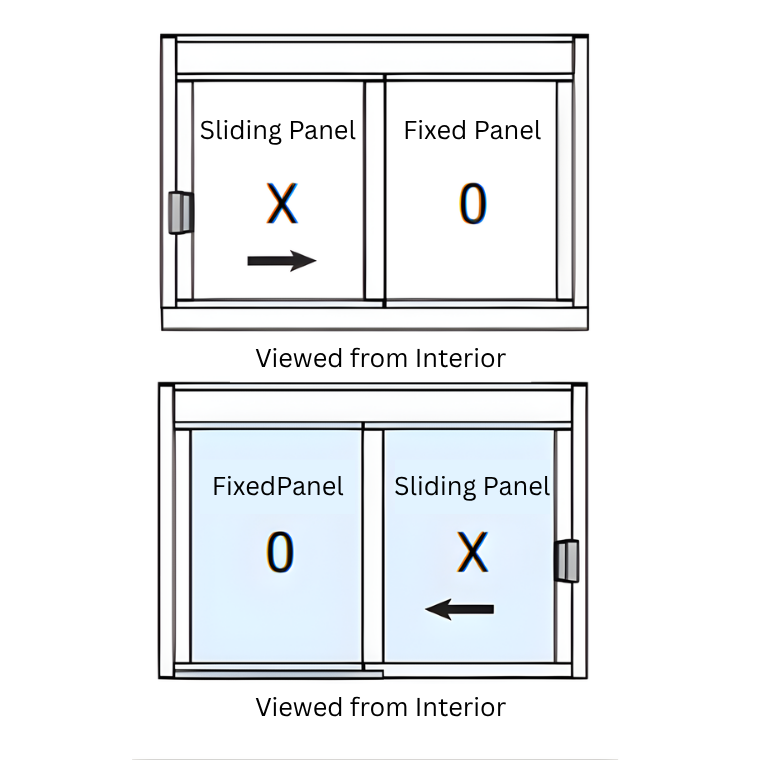

• XO Configuration, one fixed and one sliding panels.
• Available with or without tempered glass.
• Order with or without vertical Jambs.
• Order with or without Screen.

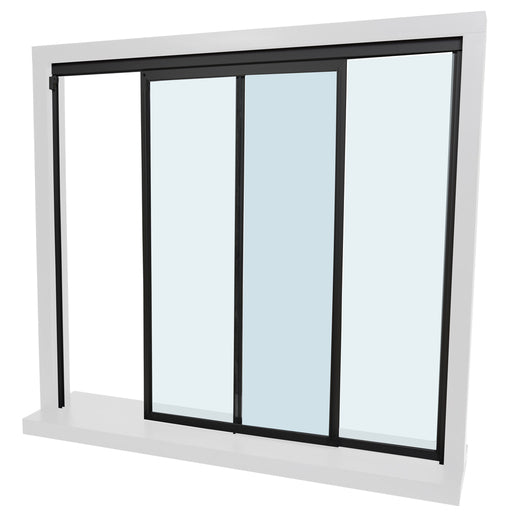

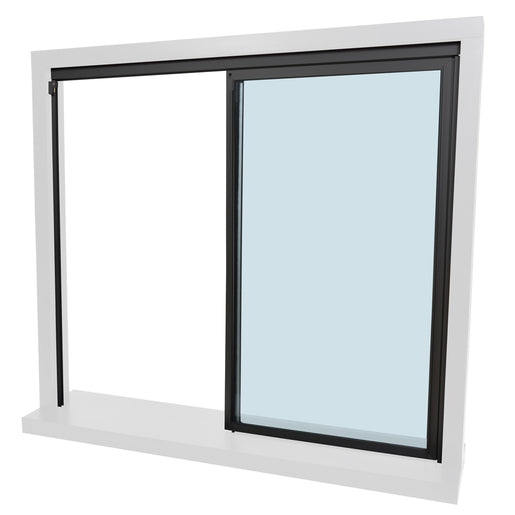

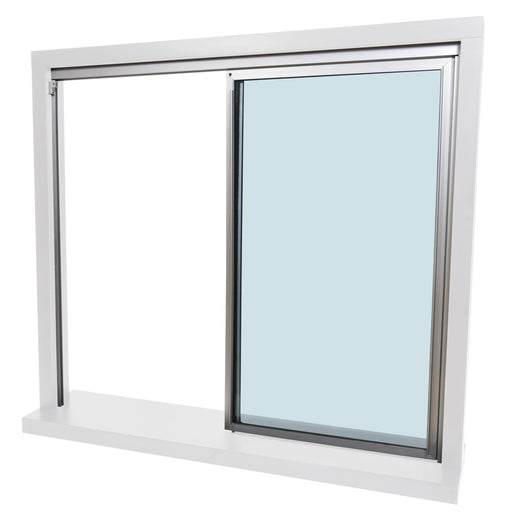

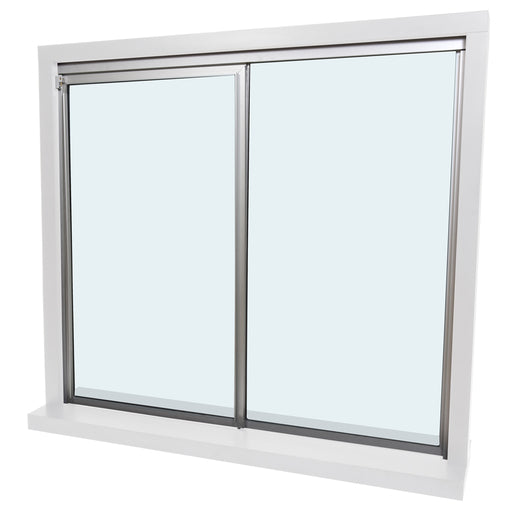

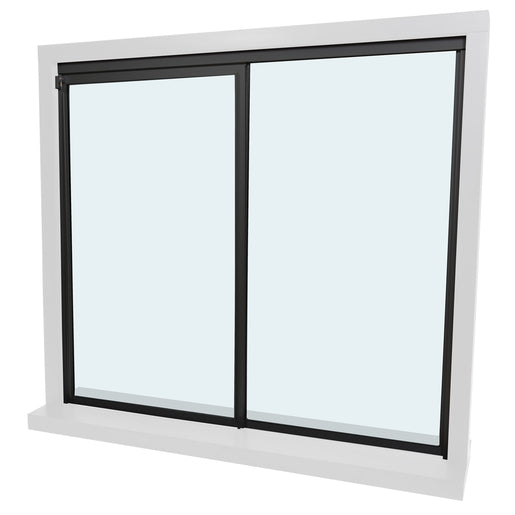

The Florence Pass-Thru Window is the most popular window of its type. Two equal panels (one fixed one sliding) give the benefit of an unobstructed counter surface and an easy rolling overhead track. Ideal for receptionist windows and typical office and pass-thru applications.

Other features:

Maximum frame size for two equal panels is 72" (1829 mm) W x 50" (1270 mm) H.

Available with two types of headers:

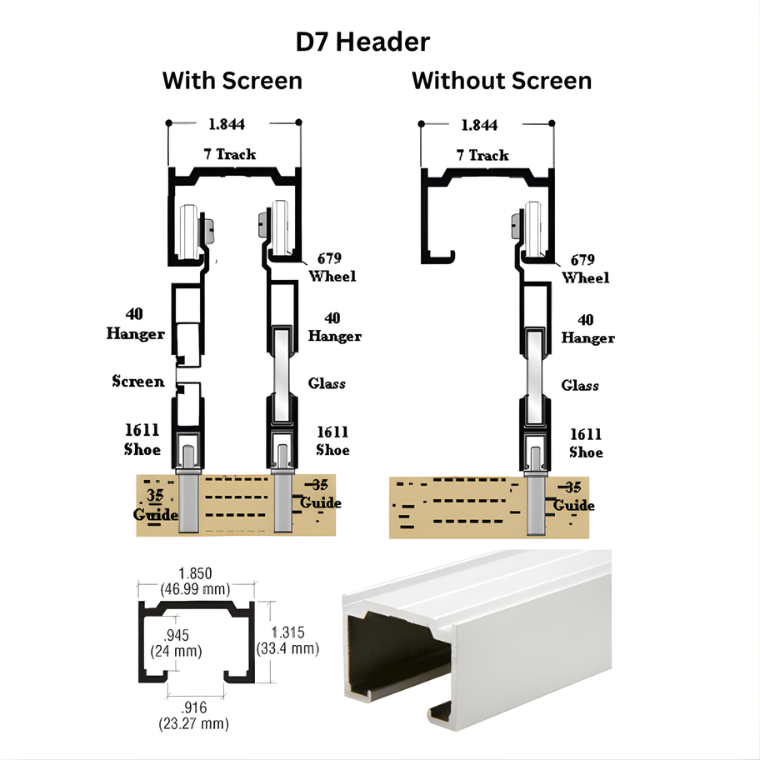

The standard D7 Overhead Track is the most common header option.

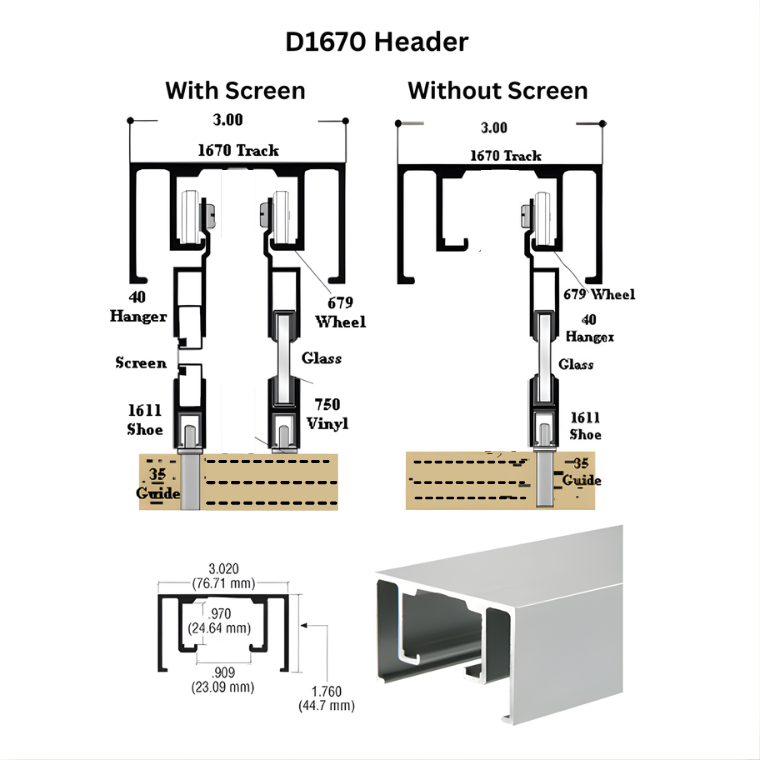

The D1670 overhead Track matches 1-3/4" x 3" (44.5 x 76.2 mm) store front tube.

Both models are also available with or without screen.

Suggested glass cutting formula for using glazing vinyl is available in the installation guide. Recommended glass sizes are provided by engineering for confirmed orders.

NOTE: These Horizontal Sliding Pass-Thru Assemblies are recommended for interior application only. Each assembly sold without glass, and includes two kinds of glazing vinyl: for 3/16" (5 mm) or 1/4" (6 mm) glazing. All assemblies are ordered by the frame size, see installation guide for recommended deductions. Frame members are color coded to facilitate assembly and glazing.

Parts list:

D7 CRL 1-7/8" Overhead Track for Pass-Thru Windows

D1670 CRL Overhead Track Extrusion

D35 CRL Retractable Metal Tip Lower Guide

D40 CRL Front Hanger Extrusion

D606 CRL Aluminum Single Jamb with Sponge Rubber Lining

D610 CRL 'H' Bar for Use on All CRL Track Assemblies

D679 CRL Nylon Ball Bearing Roller

D53ARH CRL Right Handed Window Catch for Pass-Thru Windows

D53ALH CRL Left Handed Window Catch for Pass-Thru Windows

D1611 CRL Shoe with Plastic Liner for Pass-Thru Windows

D1623 CRL Deep Channel Dust Proof Rail with Bumper
