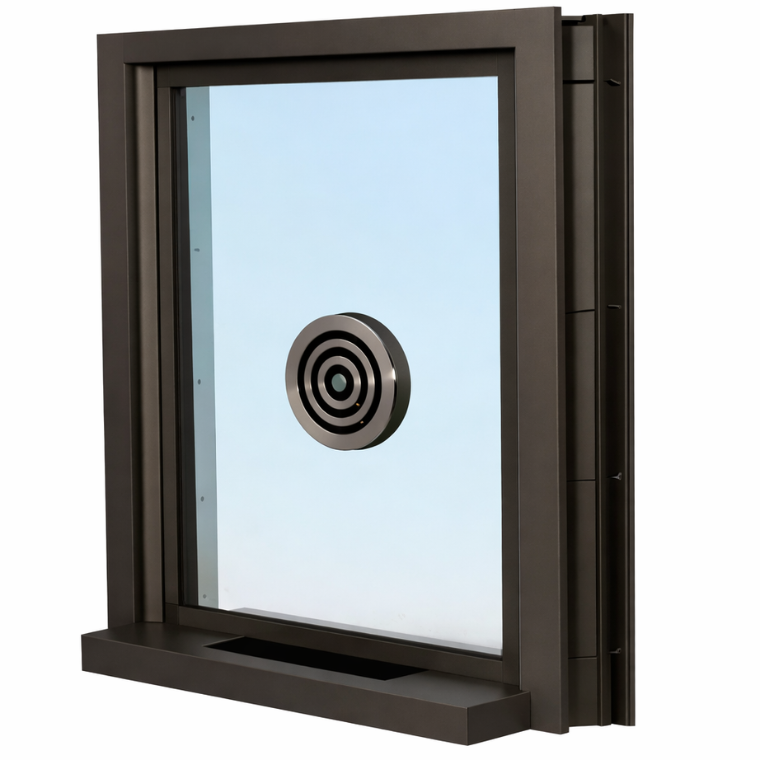

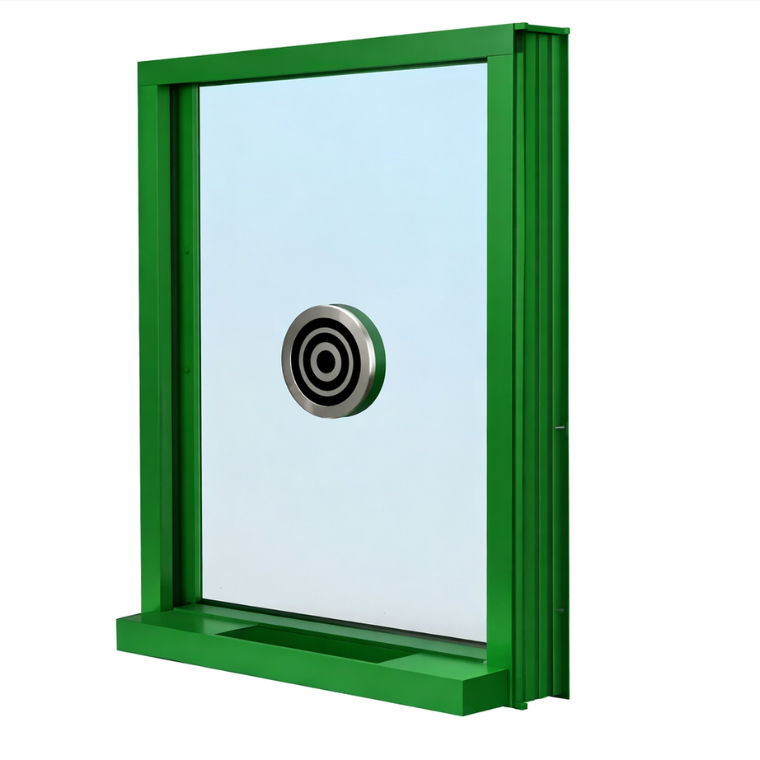

Custom Size - CRL Aluminum Ticket Window Exterior Glazed Exchange Window and Deal Tray

Roll over image to zoom in Click on image to zoom

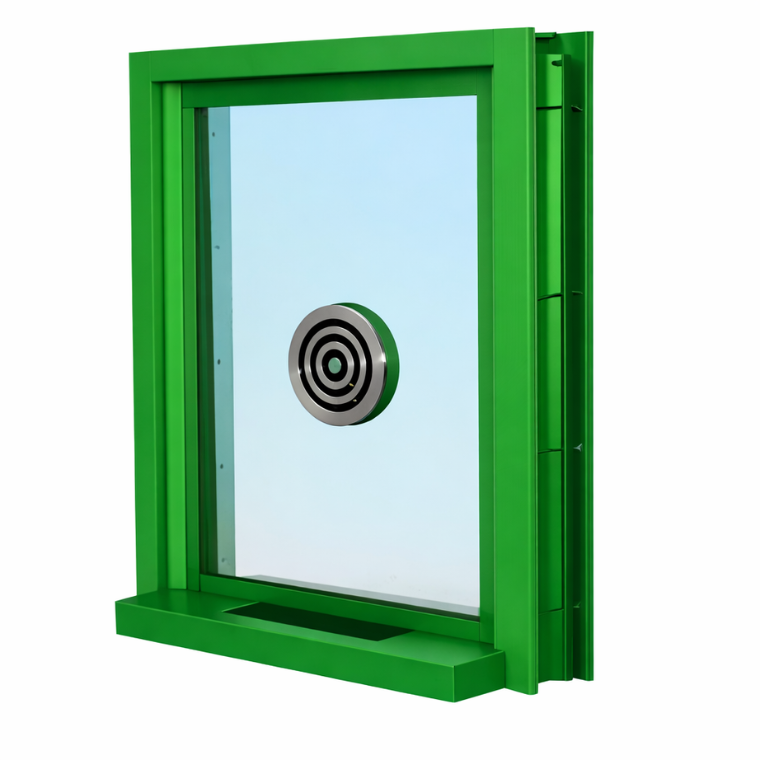

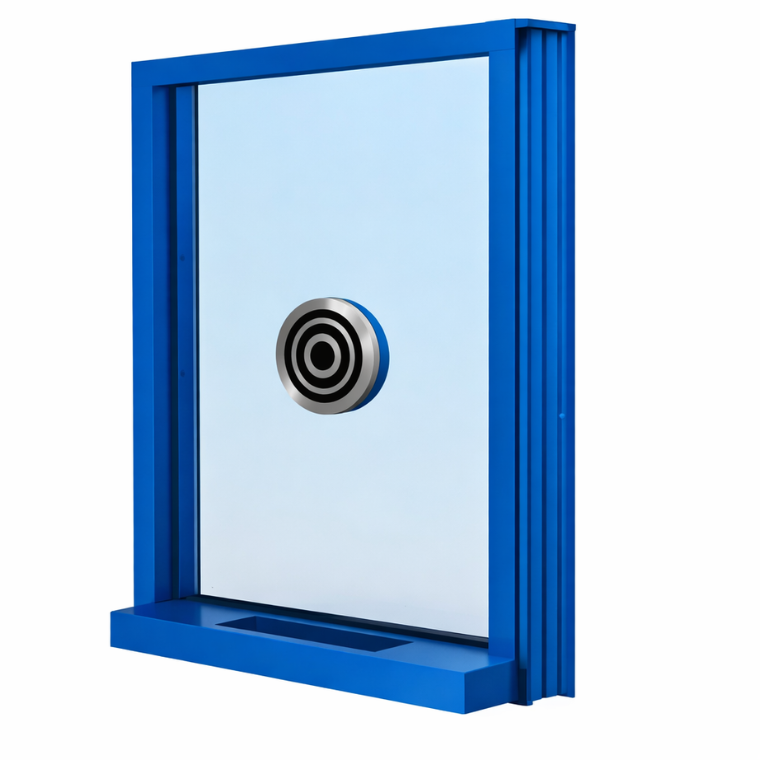

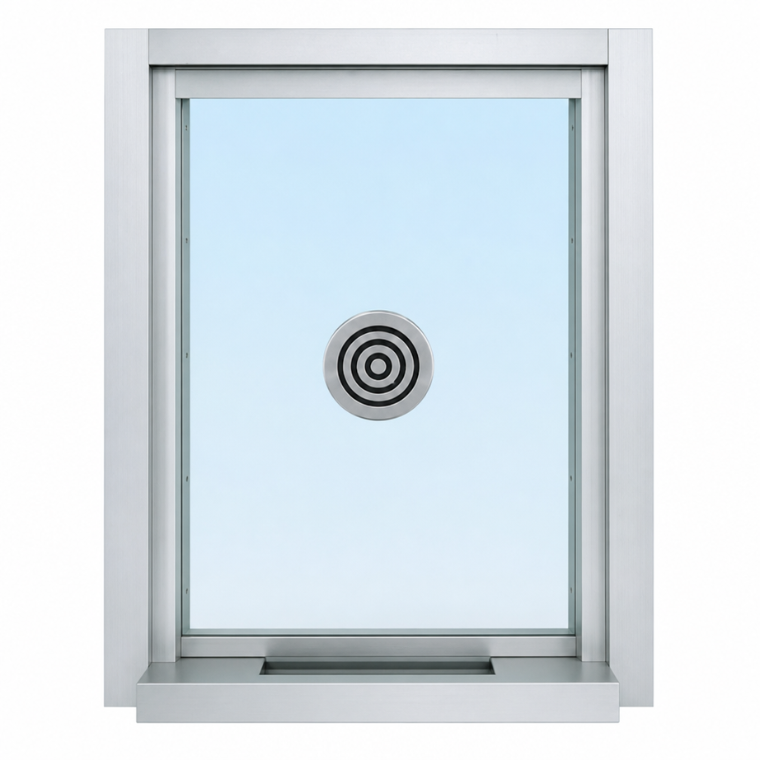

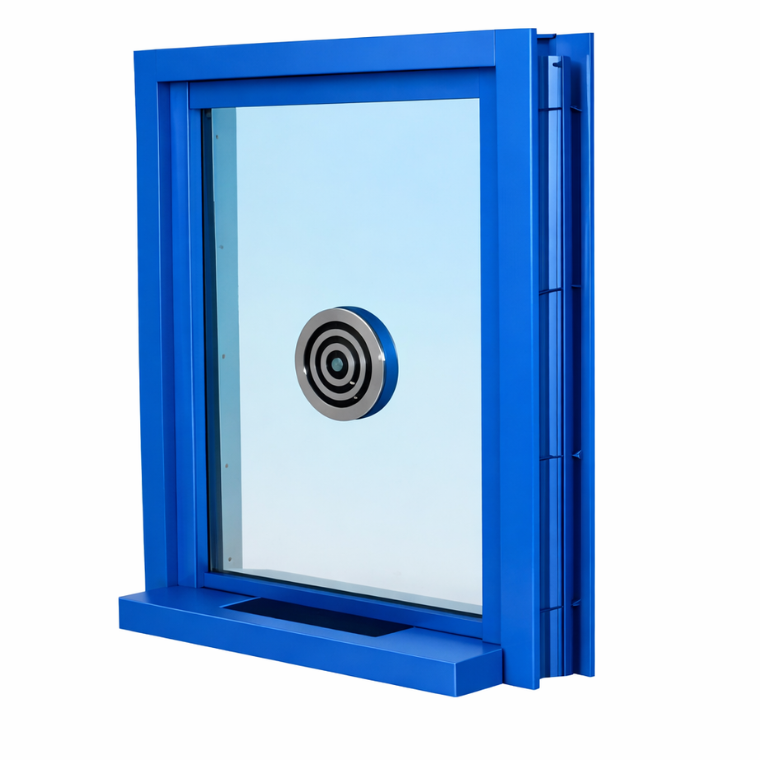

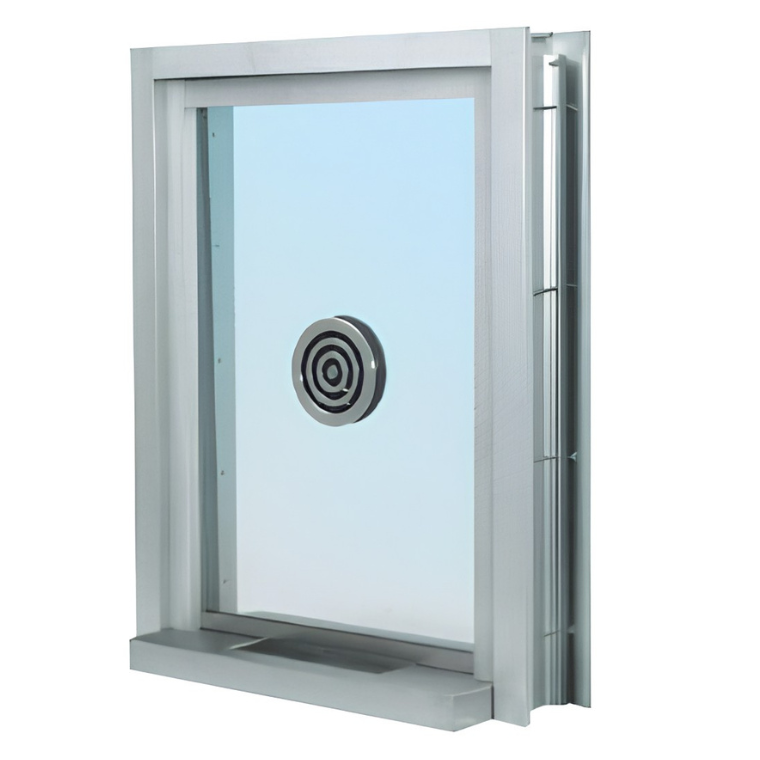

Clamp-On Frame with Stainless Steel Shelf and Built-in Non-Ricochet Bullet Resistant Deal Tray
Drawings and Specifications are Available Online

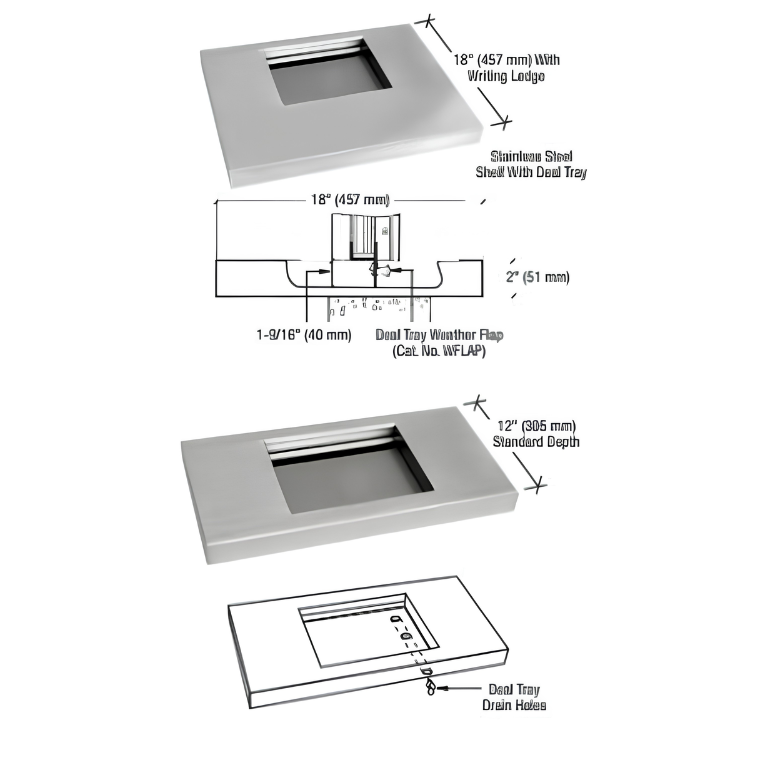

CRL Exterior Glazed Clamp-On Frame Windows have a Stainless Steel Shelf with Non-Ricochet Bullet Resistant Deal Tray for passing currency, credit cards, tickets, or small articles. The extruded aluminum frame is designed for installation into walls 5" to 8-1/2" (127 to 216 mm) thick. The shelf is typically made in depths of 12" or 18" (305 or 457 mm). The added depth of the 18" (457 mm) shelf provides a convenient writing surface on the customer's side. Tightening screws on the interior side of the frame clamps the window securely in the opening. Customer specifies overall width and height when ordering.

SPECIFICATIONS:
Materials: Glazing - 1/4" (6 mm) Glass; 1-5/16" (33 mm) Level 1 Glass; 1-1/4" (32 mm) Level 1 Acrylic; 3/4" (19 mm) Level 1 Lexgard®; 1-3/8" (35 mm) Level 2 Glass; 1" (25 mm) Level 2 Lexgard®; 1-7/8" (48 mm) Level 3 Glass; 1-3/16" (30 mm) Level 3 Glass Clad Polycarbonate; 1-1/4" (32 mm) Level 3 Lexgard®.
Finishes: Frame - Satin Anodized or Bronze; Powder Paint Colors or Custom KYNAR® Paint Colors; Shelf - Brushed Stainless Steel #4 Finish
Deal Tray: Level 1 or Level 3 Protection, Weather Flap/Drain Hole Options Available
Instructions Included

[CLAMP ON FRAME]Deal Tray Depth (Inches)	8-1/4 in. (209.6 mm)
Deal Tray Height (Inches)	1-9/16 in. (39.7 mm)
Deal Tray Width (Inches)	11 in. (279.4 mm)
Glazed	Yes
Glazing Thickness (Inches)	1/4 in. To 1-3/8 in. (6 mm To 35 mm)
Glazing Type	Specify
Shelf Depth (Inches)	12 in. (304.8 mm), 18 in. (457.2 mm)
Shelf Thickness (Inches)	2 in. (50.8 mm)
Shelf Width (Inches)	Overall Frame Width Less 4 in. (Overall Frame Width Less 102 mm)
Size (Inches)	Specify
Usage	Interior, Exterior
Wall Thickness (Inches)	5 in. To 8-1/2 in. (127 mm To 216 mm)
Finish/Color	Satin Anodized, Black Bronze Anodized, Kynar Painted, Powder Coated

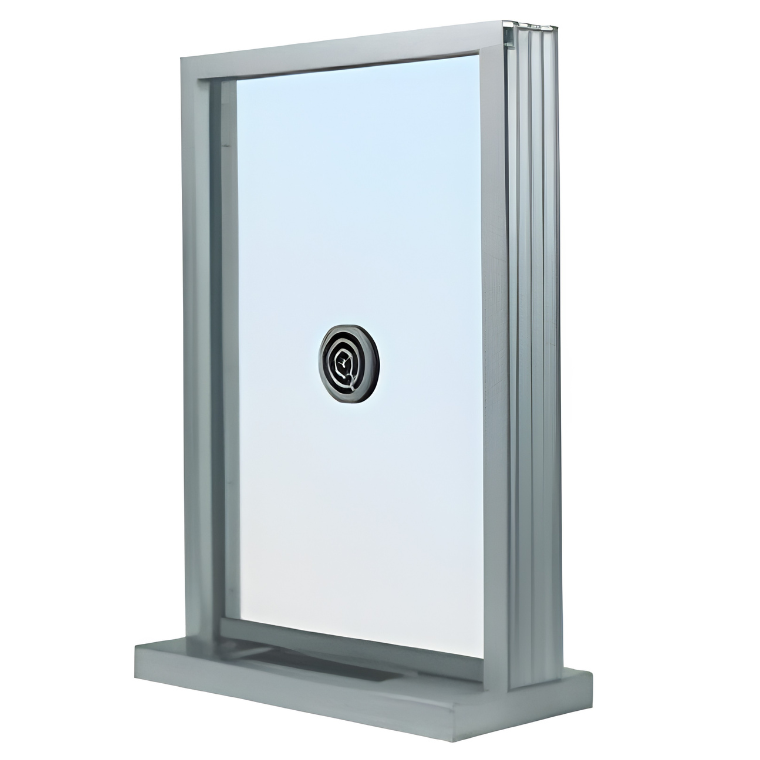

[NARROW INSERT FRAME]Deal Tray Included	Non-Ricochet Bullet Resistant Deal Tray
Frame Depth (Inches)	4 in. (101.6 mm)
Glazed	Yes
Glazing Thickness (Inches)	1/4 in. To 1-1/4 in. (6 mm To 32 mm)
Glazing Type	Specify
Material	Aluminum

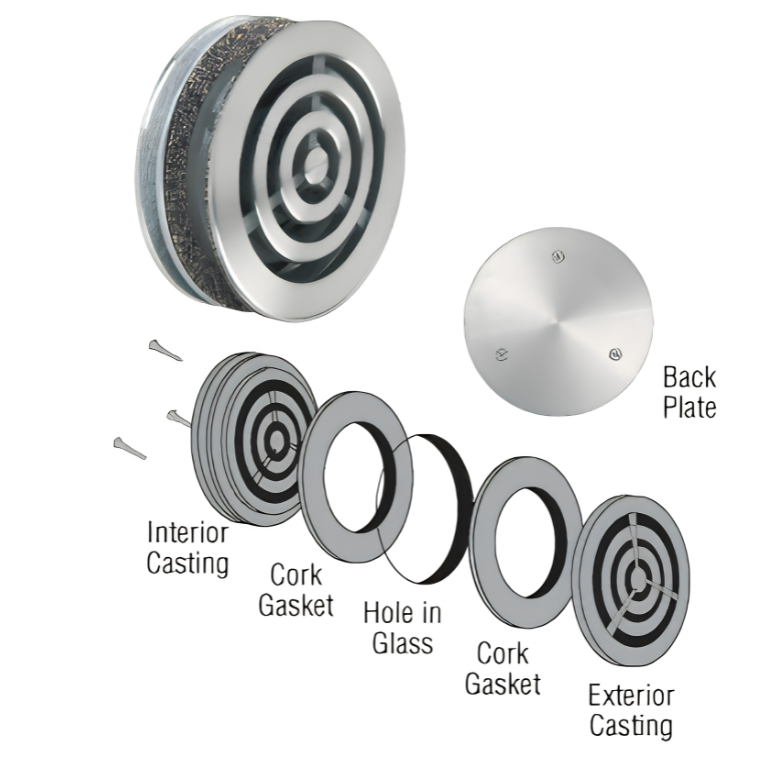

Optional Speak-Thru	Specify
Protection Level	Specify (1,2,3)
Shelf Depth (Inches)	12 in. (304.8 mm), 18 in. (457.2 mm)
Shelf Thickness (Inches)	2 in. (50.8 mm)
Shelf Width (Inches)	Overall Frame Width
Size (Inches)	Specify
Usage	Interior, Exterior
Window Style	Fixed Single Lite
Finish/Color	Satin Anodized, Black Bronze Anodized, Kynar Painted, Powder Coated
[STANDARD INSERT FRAME]Deal Tray Depth (Inches)	12 in. (304.8 mm), 18 in. (457.2 mm)
Deal Tray Height (Inches)	2 in. (50.8 mm)
Deal Tray Included	Level 1 or Level 3 Protection
Frame Height (Inches)	Specify
Frame Width (Inches)	Specify
Glazed	Yes
Glazing Thickness (Inches)	1/4 in. To 1-7/8 in. (6 mm To 48 mm)
Glazing Type	Specify
Finish/Color	Satin Anodized, Black Bronze Anodized, Kynar Painted, Powder Coated, Brushed Stainless Steel

Installation Instructions

Detailed Drawing C0EW.pdf

Specifications

Specifications coew12.doc

CAD Drawings - dwg

Detailed Drawing C0EW.dwg
