Name: Custom Size - CRL Aluminum Ticket Window Exterior Glazed Exchange Window and Deal Tray - Surround Sound Voice System
Brand: CRL
SKU: C01W12A
Price: 1000.0 USD
Availability: InStock

Custom Size - CRL Aluminum Ticket Window Exterior Glazed Exchange Window and Deal Tray - Surround Sound Voice System

Roll over image to zoom in Click on image to zoom

Clamp-On Frame Design Incorporates Surround Sound and Built-In Non-Ricochet Bullet Resistant Deal Tray
Surround Sound System Allows Natural Voice Transmission

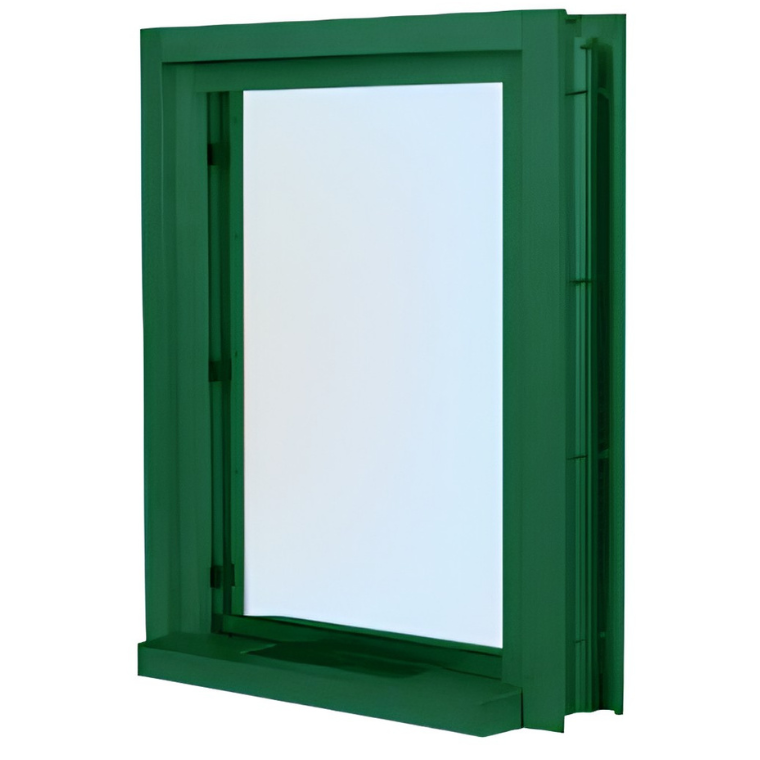

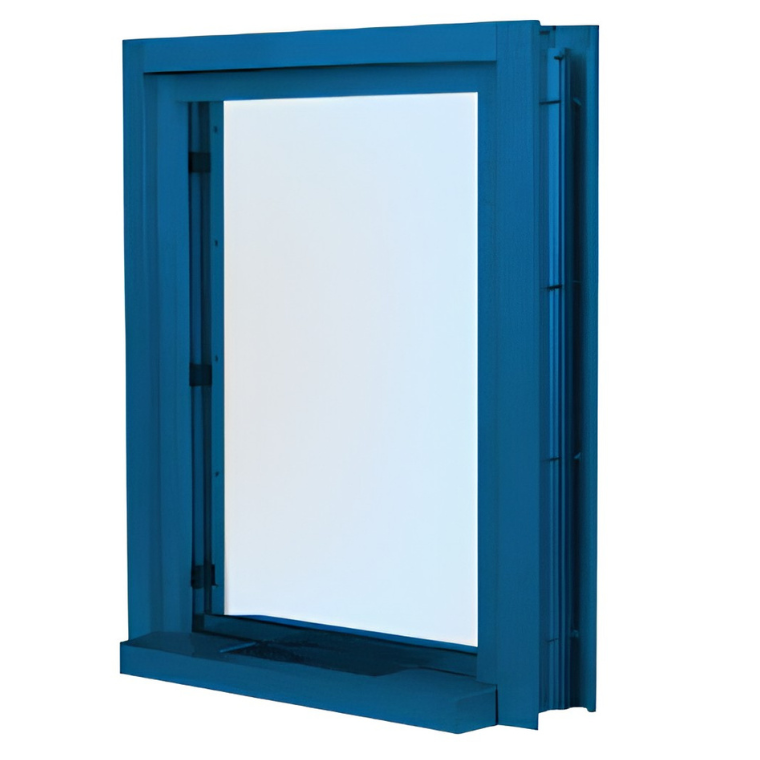

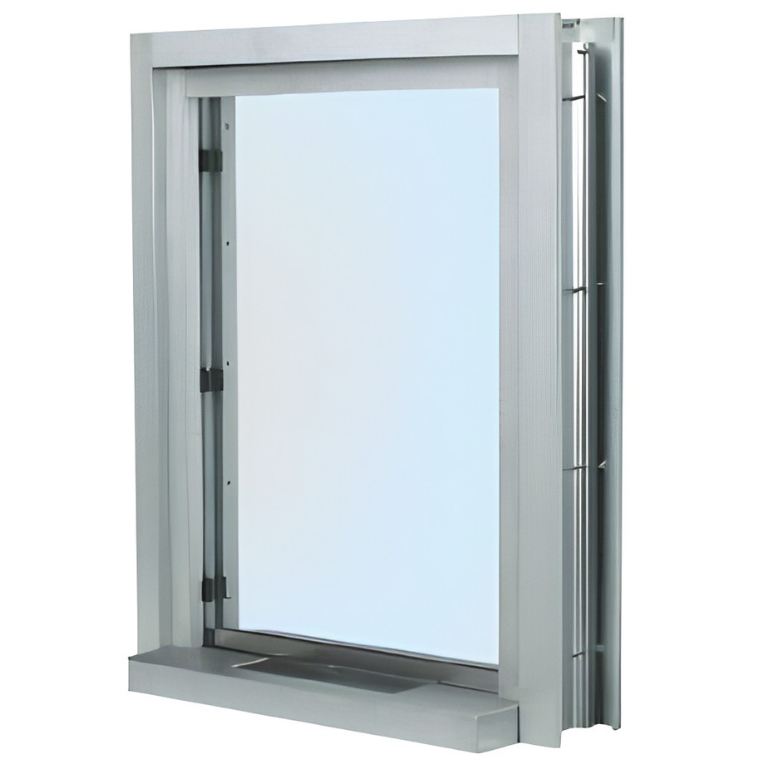

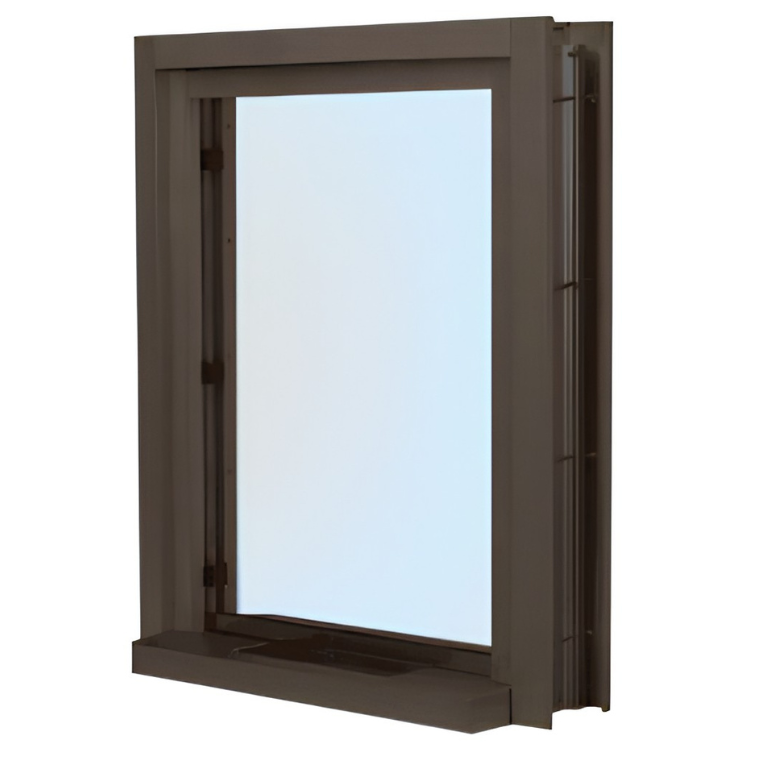

CRL Interior Glazed Clamp-On Frame Windows with Surround Sound Voice Transmission System and Brushed Stainless Steel Shelf with Non-Ricochet Bullet Resistant Deal Tray. The extruded aluminum frame is intended for installation into walls 5" to 8-1/2" (127 to 216 mm) thick. Typical shelf depths are 12" and 18" (305 and 457 mm). Added depth of the 18" (457 mm) shelf gives customer a convenient writing surface. Tightening screws on the interior side of the frame clamps the window securely in the opening. Customer specifies overall width and height when ordering.

SPECIFICATIONS:
Materials: Glazing - 1/4" (6 mm) Glass; 1-5/16" (33 mm) Level 1 Glass; 1-1/4" (32 mm) Level 1 Acrylic; 3/4" (19 mm) Level 1 Lexgard®; 1-3/8" (35 mm) Level 2 Glass; 1" (25 mm) Level 2 Lexgard®; 1-7/8" (48 mm) Level 3 Glass; 1-3/16" (30 mm) Level 3 Glass Clad Polycarbonate; 1-1/4" (32 mm) Level 3 Lexgard®.
Finishes: Frame - Satin Anodized or Bronze Anodized; RAL Powder Paint Colors or Custom Kynar Paint Colors; Shelf - Brushed Stainless Steel #4 Finish
Deal Tray: Level 1 or Level 3 Protection
Instructions Included

[CLAMP ON FRAME SURROUND SOUND SYSTEM]

Deal Tray Depth (Inches): 8-1/4 in. (209.6 mm)
Deal Tray Height (Inches): 1-9/16 in. (39.7 mm)
Deal Tray Width (Inches): 11 in. (279.4 mm)
Finish/Color: Satin Anodized, Black Bronze Anodized, Kynar Painted, Powder Coated
Finish - Shelf & Deal Tray: Brushed Stainless Steel
Glazed: Yes
Glazing Thickness (Inches): 1/4 in. To 1-3/8 in. (6 mm To 35 mm)
Glazing Type: Specify
Shelf Depth (Inches): 12 in. (304.8 mm), 18 in. (457.2 mm)
Shelf Thickness (Inches): 2 in. (50.8 mm)
Shelf Width (Inches): Overall Frame Width Less 4 in. (Overall Frame Width Less 102 mm)
Size (Inches): Specify
Usage: Interior
Wall Thickness (Inches): 5 in. To 8-1/2 in. (127 mm To 216 mm)

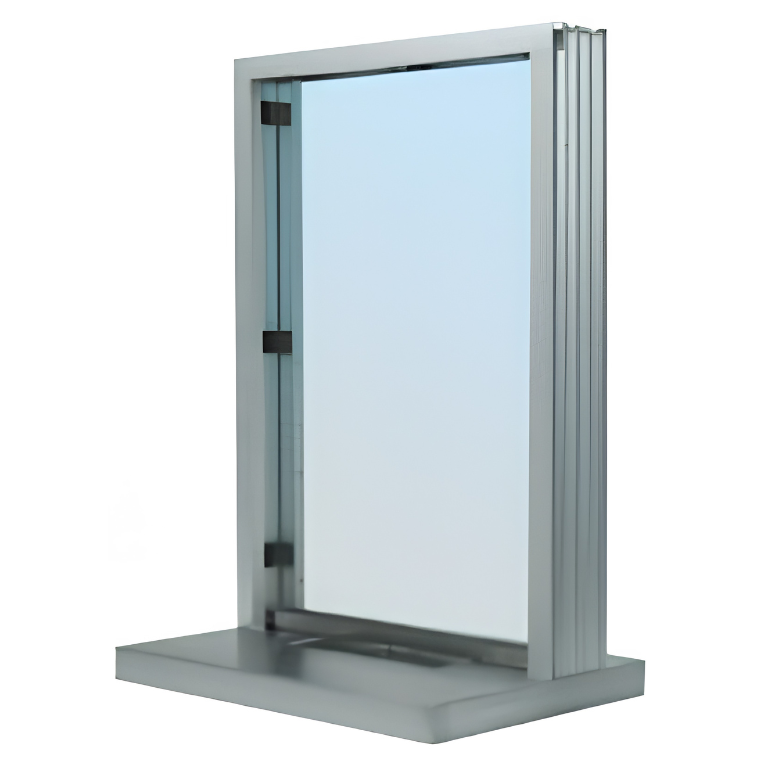

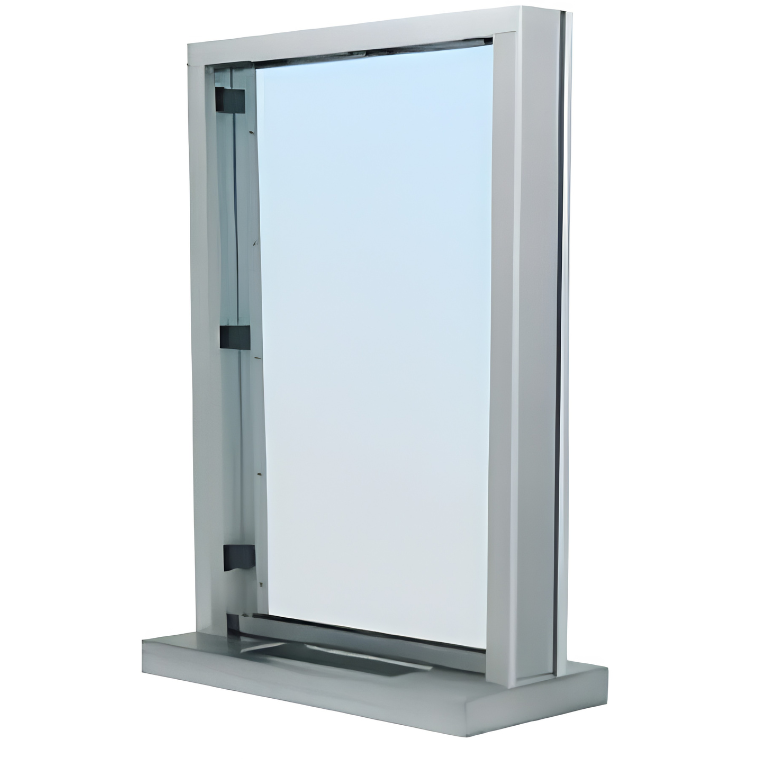

[NARROW INSERT FRAME SURROUND SOUND SYSTEM]

Deal Tray Included: Non-Ricochet Bullet Resistant Deal Tray
Finish/Color: Satin Anodized, Black Bronze Anodized, Kynar Painted, Powder Coated
Frame Depth (Inches): 4 in. (101.6 mm)
Glazed: Yes
Glazing Thickness (Inches): 1/4 in. To 1-1/4 in. (6 mm To 32 mm )
Glazing Type: Specify
Includes: Surround Sound
Material: Aluminum
Protection Level: Specify (1,2,3)
Recommendations: CRL Recommends A Maximum Width Of 36" When Surround Sound Is Used
Shelf Depth (Inches): 12 in. (304.8 mm), 18 in. (457.2 mm)
Shelf Thickness (Inches): 2 in. (50.8 mm)
Shelf Width (Inches): Overall Frame Width
Size (Inches): Specify
Usage: Interior
Window Style: Fixed Single Lite

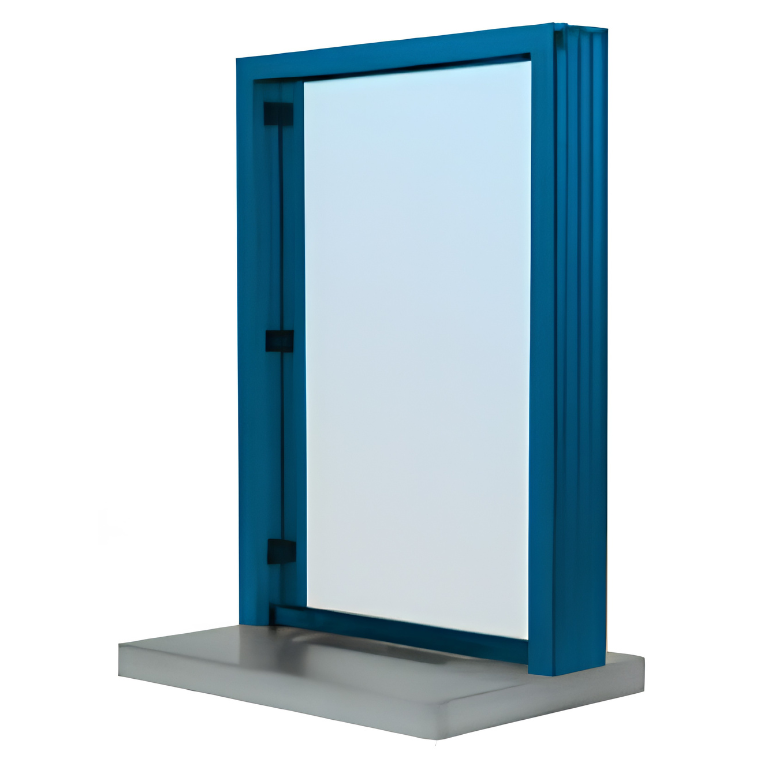

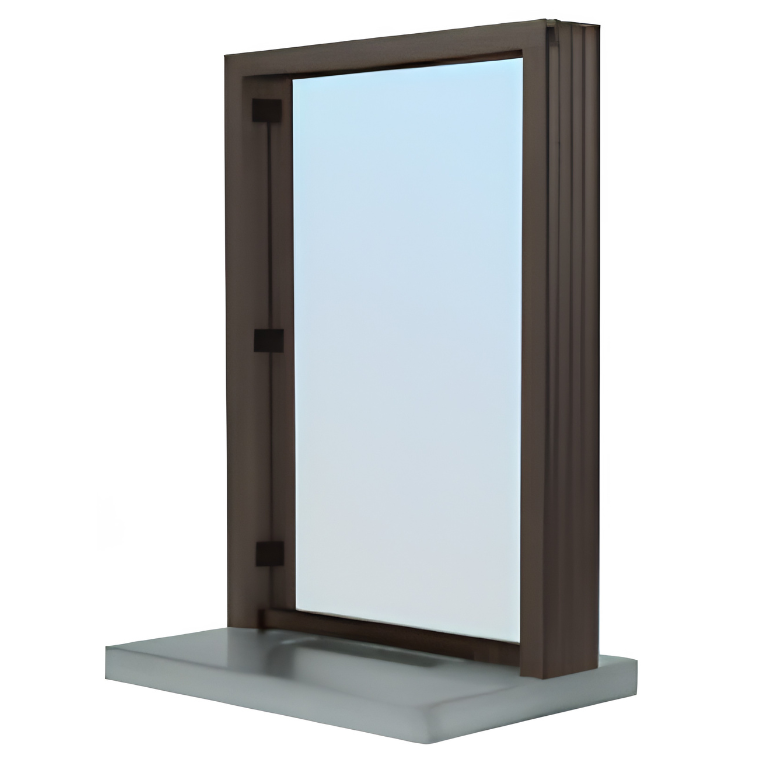

[STANDARD INSERT FRAME SURROUND SOUND SYSTEM]

Deal Tray Depth (Inches): 12 in. (304.8 mm), 18 in. (457.2 mm)
Deal Tray Height (Inches): 2 in. (50.8 mm)
Deal Tray Included: Level 1 or Level 3 Protection
Frame Height (Inches): Specify
Frame Width (Inches): Specify
Glazed: Yes
Glazing Thickness (Inches): 1/4 in. To 1-7/8 in. (6 mm To 48 mm)
Glazing Type: Specify
Finish/Color: Satin Anodized, Black Bronze Anodized, Kynar Painted, Powder Coated, Brushed Stainless Steel

Installation Instructions

Installation Instructions CO1W12 18 instructions.pdf

Specifications

Specifications co1w12.doc

CAD Drawings - dwg

Detailed Drawing CO1W12 18.dwg
