CRL Framed Rotating Drum

CRLSKU: RS200DRUM

Finish: Satin Anodized
Price:
Sale price$3,178.94 USD
 More payment options

Description

  • Build Your Own Window Around CRL's Framed Rotating Drum
  • Replacement for CRL's RS200A Service Window
  • Stainless Steel Drum

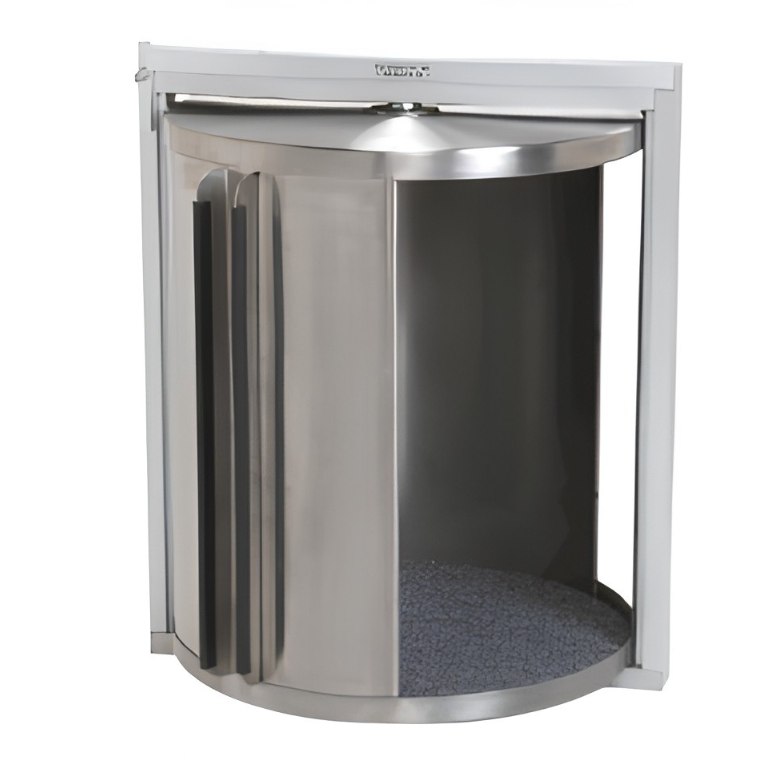

Our CRL Framed Rotating Drum provides pass-through security. Satin anodized or bronze anodized perimeter frame surrounds a stainless steel drum. Built-in latch prevents unwanted drum rotation. Fits a rough opening of 16-1/8" (410 mm) wide x 18-5/8" (473 mm) high.

SPECIFICATIONS:
Materials: Aluminum Extrusion; 16 Gauge Stainless Steel Drum
Finishes: Brushed Stainless Steel (Drum Portion Only); Frame - Satin Anodized or Bronze Anodized
Instructions Included

Product Warning:

Ship Via Common Carrier Recommended due to size, weight and packaging, so that damage does not easily occur.

Specifications

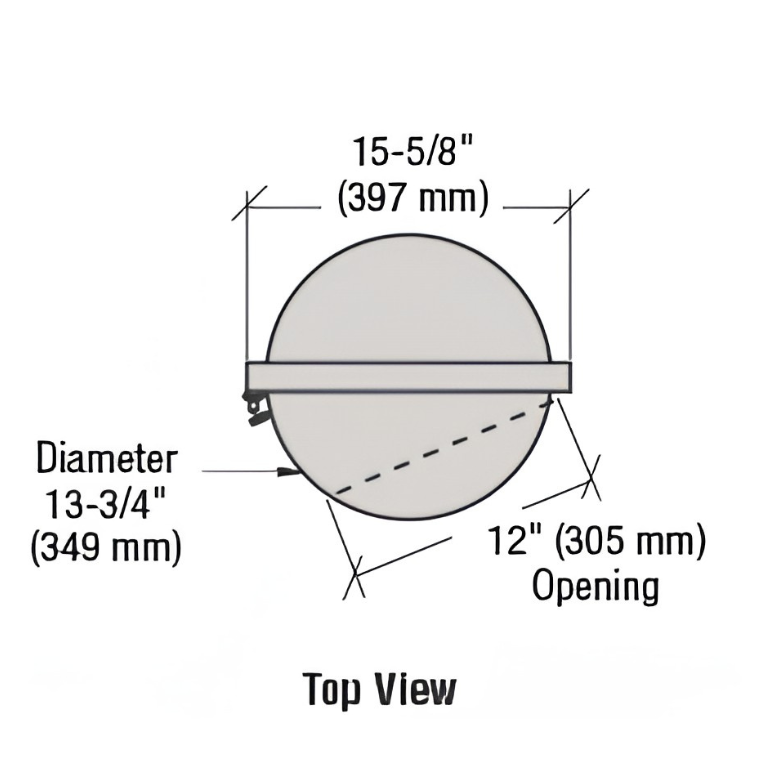

Depth 13-3/4 in. (349.3 mm)
Finish/Color Satin Anodized, Duranodic Bronze Anodized

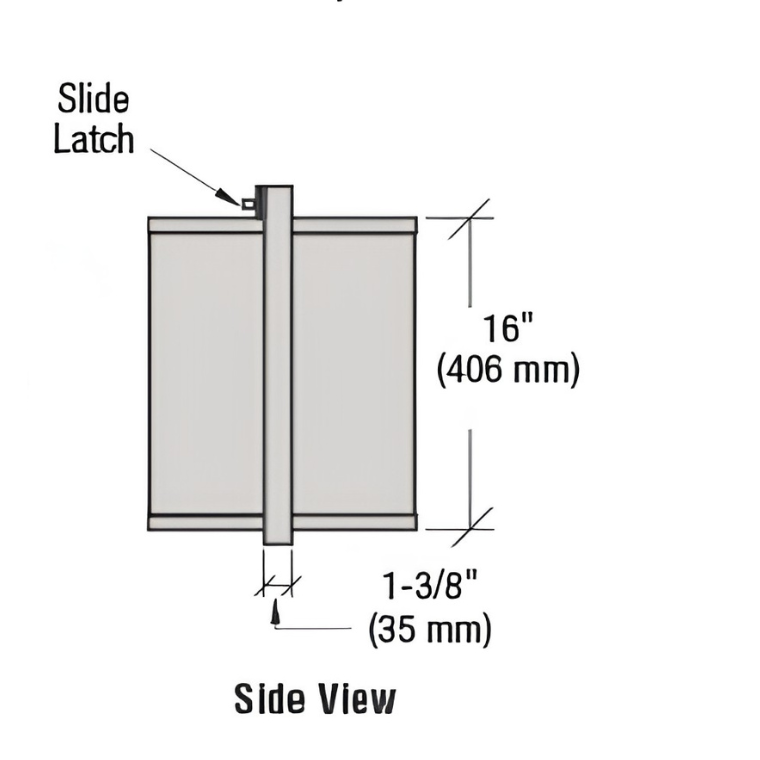

Frame Depth 1-3/8 in. (34.9 mm)

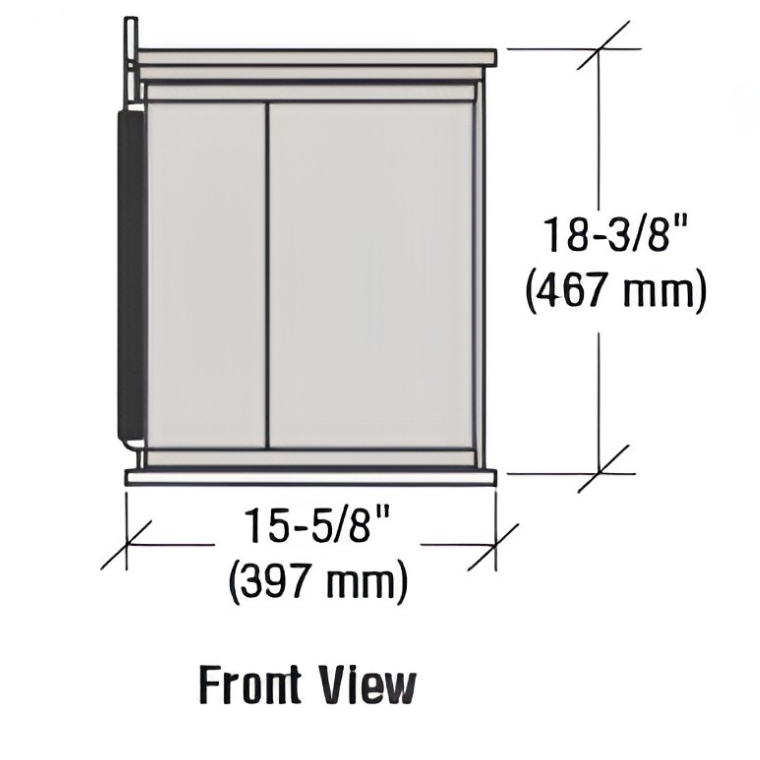

Height 18-3/8 in. (466.7 mm)
Material Aluminum
Width 15-5/8 in. (396.9 mm)

Installation Instructions

Drawing rs200 drum.pdf

CAD Drawings - dwg

Drawing rs200 drum.dwg
