• For Light Duty Applications of 50 or Fewer Uses Per Day
• For Windows Exceeding 1050 Square Inches (Width x Height)
• Available Pre-Glazed or Non-Glazed
• Drawings and Specifications are Available

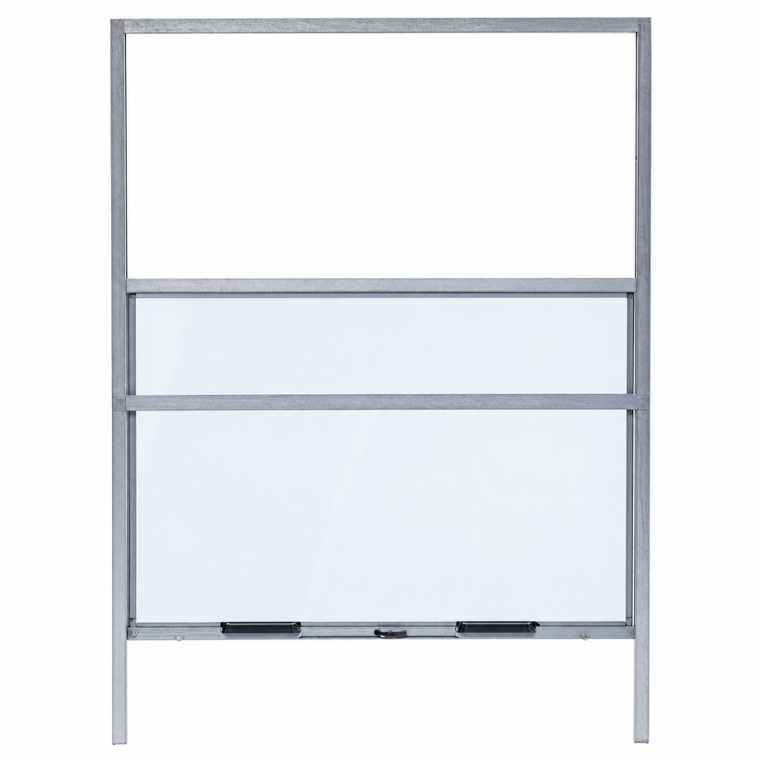

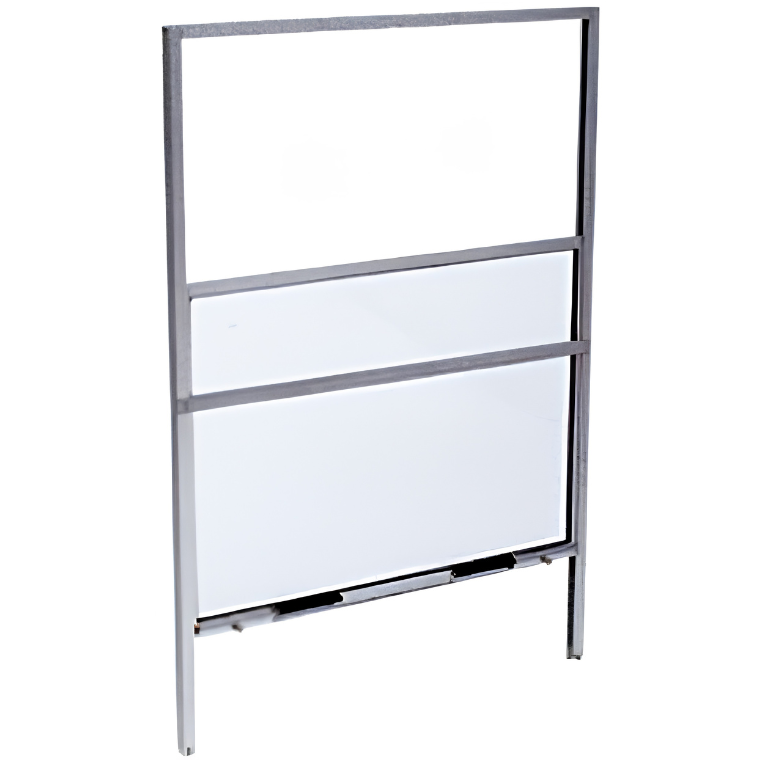

These CRL Vertical Sliding Service Windows are designed for surface mount or pocket installation. They feature a lower opening panel that slides up into the empty upper frame. Select models are pre-glazed with 1/4" (6 mm) tempered glass (sliding panel only) or may also be ordered supplied only with vinyl to accommodate 1/4" (6 mm) thick glazing materials. Slide lock and Pin Lock options available. All windows are shipped assembled, ready for glazing and installation. Maximum width is 36" (91mm).

NOTE: Windows exceeding 1050 square inches (width x height) will require a covered top to conceal sash balances. For pocket installations an opening equal to the overall size of the sliding panel is required above the opening. An overhang or awning is recommended if used in an exterior application.

SPECIFICATIONS:
Materials: Extruded Aluminum
Finishes: Satin Anodized, Duranodic Bronze, RAL Powder Painted or KYNAR® Painted
Glazing: Pocket 1/4" (6 mm) Vinyl Only
Installation Instructions Included

Weight: Custom so weight varies

Product Warning:

• For Low-Moderate Usage
• Designed for Separate Openings
• Overhang needed on Exterior
• Friction Glide Sliders May Not Be Ideal For Some Applications
